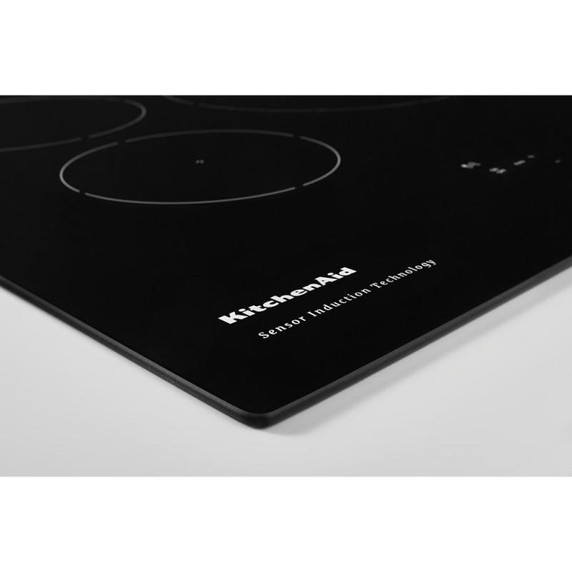

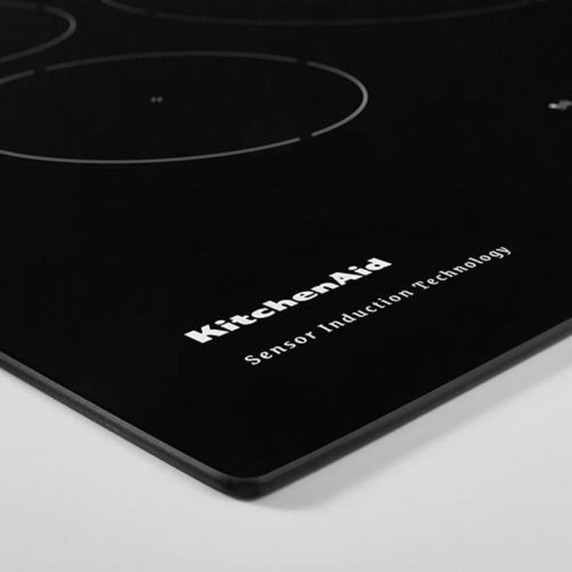

Sensor Induction TechnologyGenerates heat directly within cookware, reaching high temperatures quickly and cooling down rapidly for precise control that enables a full range of cooking techniques.
Auto Presets for Melt, Simmer, Keep Warm and BoilAutomatically set the right heat for different techniques and stages of cooking, taking the guesswork out of choosing settings.

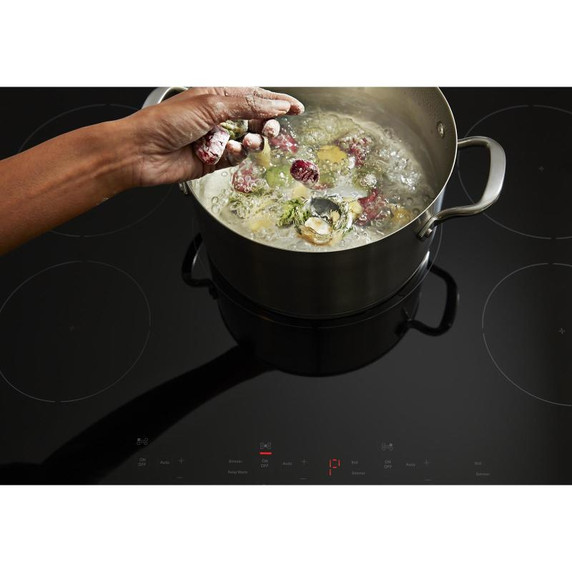

Power Boost Functionsets the highest heat for rapid boiling, bringing three quarts of water to a boil on average nearly twice as fast as our gas cooktop.* After five minutes, the heat automatically adjusts to keep water at a rolling boil. *3000W induction element set to Power Boost compared to KitchenAid® 10,000 BTU gas burner.

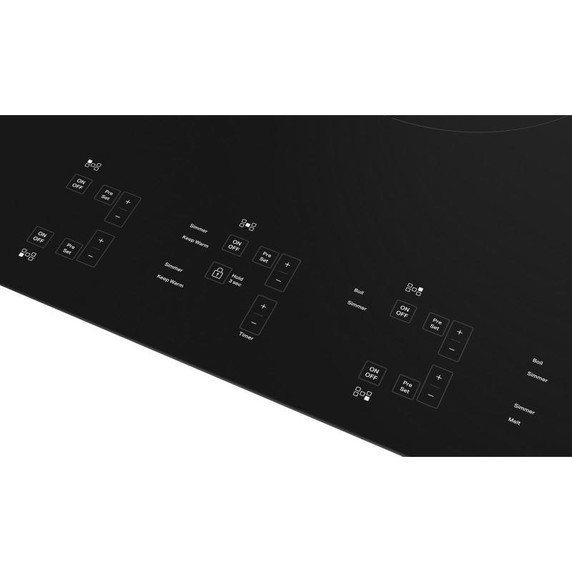

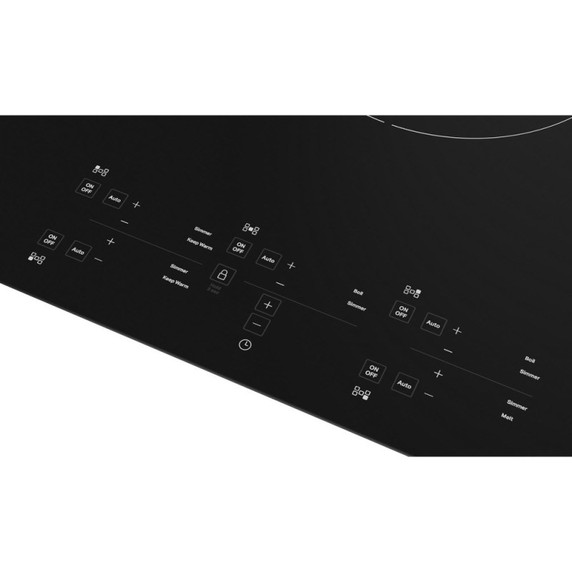

Touch-Activated ControlsFor assisted cooking modes, auto presets and numerical power settings are simple to use. The seamless design is also easy to clean.
Pan Size DetectionRecognizes the size and placement of cookware to generate heat directly within the pan. An indicator light and sound will alert you if you turn the cooktop on without a pan on the selected element or if your pan is not compatible with induction cooking.
Control LockHelps prevent unintended use and makes it easier to clean the control panel.

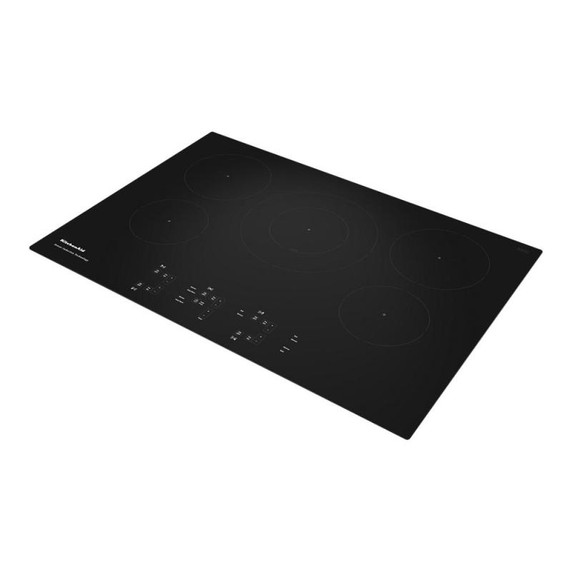

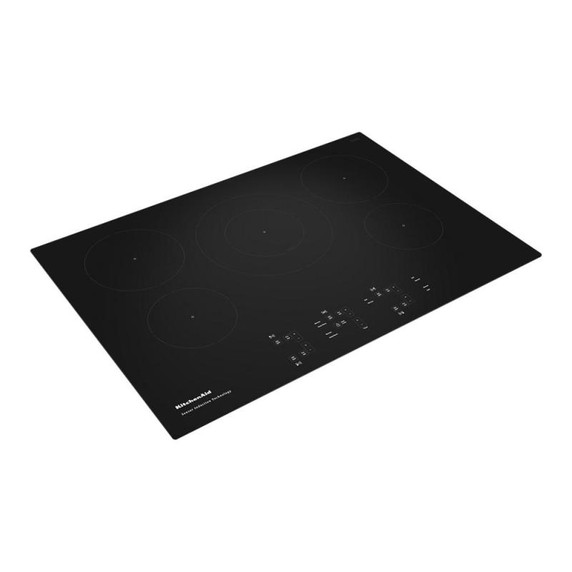

Frameless DesignAllows flush installation for a seamless look or standard installation to fit an existing cooktop cutout.
Requires Induction-Compatible CookwareSuch as multi-ply stainless steel, enamelled steel or cast iron. Aluminum and copper cookware will not work unless it has a base made of iron or steel. Look for pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.
Control TypeManual
Control LocationFront
Hz60

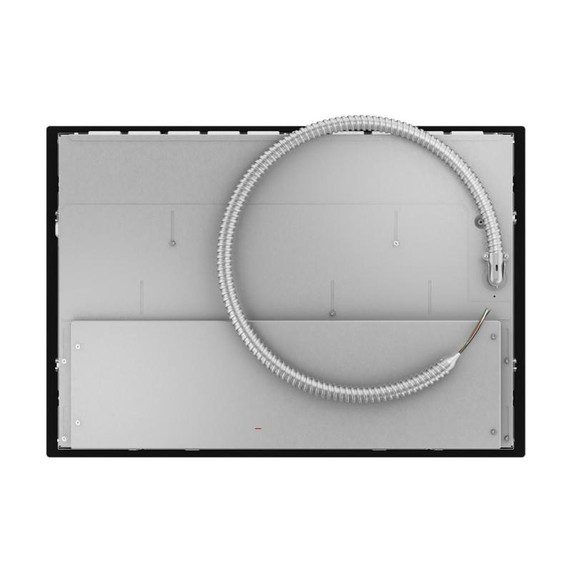

Power Cord IncludedYes
Volts240
Amps30
208v CompatibleYes
Watts10
Fuel TypeElectric
Country Of OriginUSA
Optional AccessoriesW11463464, W11463466
Extended Service Plan ParentEW08IW2Y, EW08IW4Y, EW08IW1Y
Product To Product PairsKVUB400GSS, UVL5430JSS, KVWB400DSS, KVUB600DSS, KXD4630YSS, KVWB600DSS, KVWB600HBS
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Downdraft VentNo
Installs Over Built In OvenYes
Automatic Pan DetectionYes
Automatic Pan Size AdjustmentYes
Digital DisplayYes
Power BoostYes
True Flush InstallationYes
ULYes
ADA CompliantYes
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Right Rear Element Burner TypeStandard

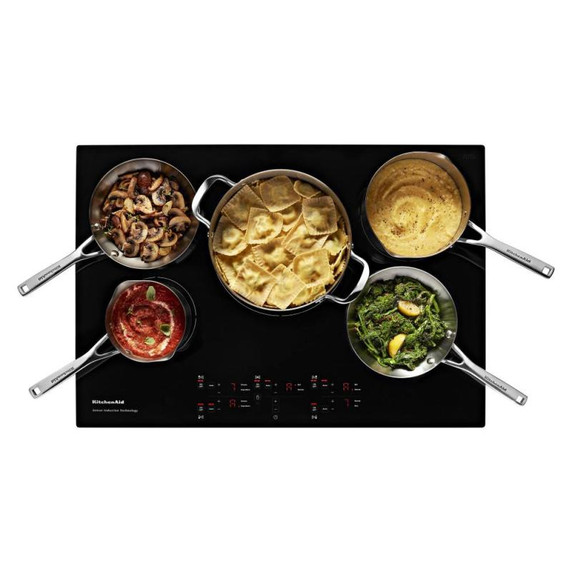

Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Center Front Element Burner Power2100W/3600WBoost
Cooktop Element StyleInduction
Left Front Element Burner TypeStandard
Right Front Element Burner Power1200W/1600WBoost
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Center Front Element Burner Size10in.
Left Front Element Burner Size6in.
Left Front Element Burner Power1200W/1600WBoost
Left Rear Element Burner Size7in.
Right Rear Element Burner Size7in.
Left Rear Element Burner Power1800W/2100WBoost
Right Rear Element Burner Power1800W/2100WBoost

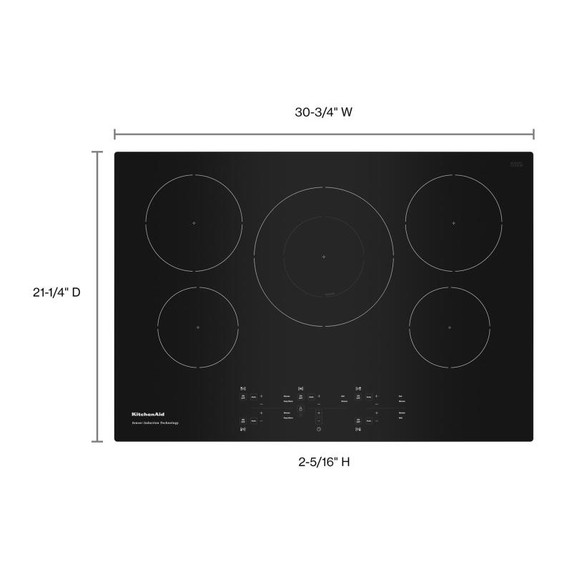

Depth21.72"
Height2.31"
Maximum Height4.0"
Net Weight46.0 lbs.
Width31.19"
Carton Depth Inch25.28
Carton Height Inch7.64
Carton Width Inch34.15
