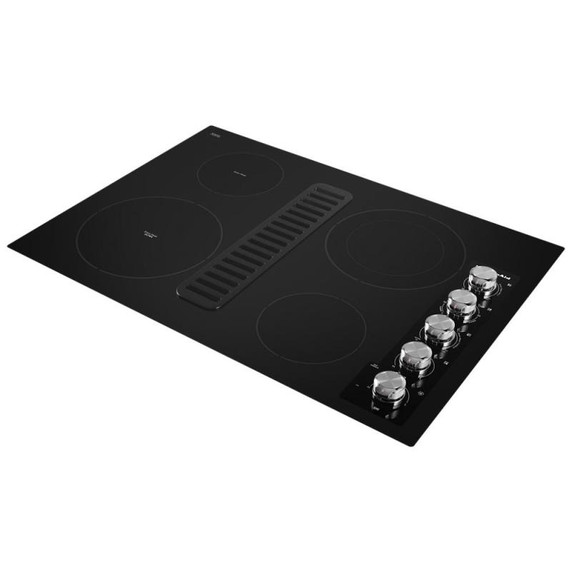

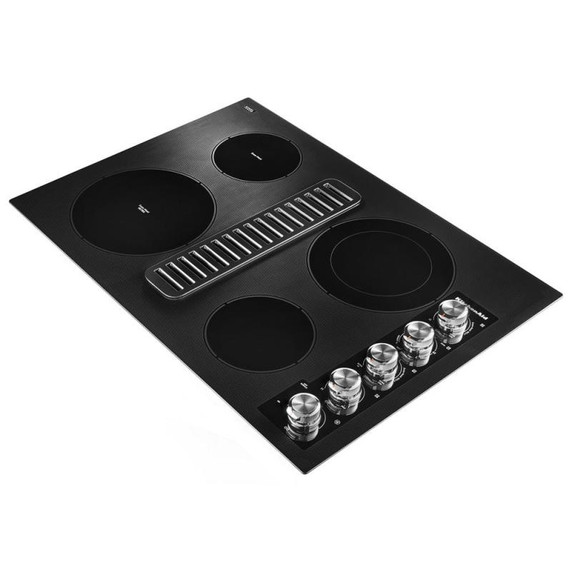

Downdraft VentilationIntegrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
10'' Even-Heat™ Ultra Element with Simmer SettingProvides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

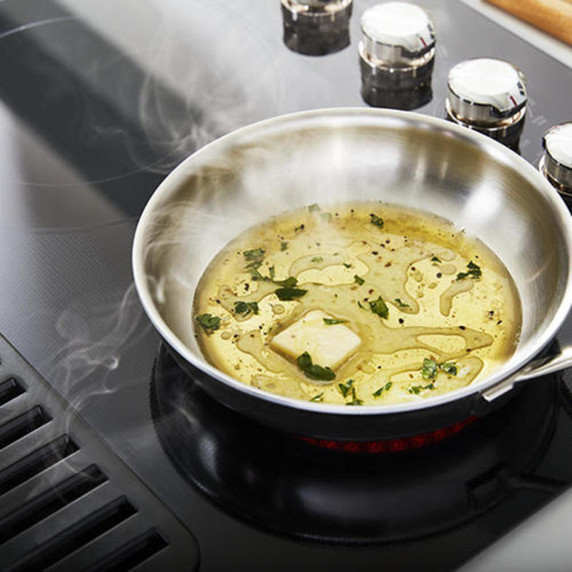

6'' Even-Heat™ Element with Melt SettingCombines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
300 CFM Exhaust RatingHandles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan ControlCan be precisely matched to cooking needs, effectively removing steam, grease, and odours from the air.
CookShield Finish for Glass SurfaceProtects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
9''/6'' Ultra Power™ Double-Ring Round ElementTwo element sizes in one provide the ability to use it for large stock pots or six-inch sauté pans and handle tasks ranging from rapid boiling and searing to wok cooking.
Convertible to Duct-Free VentilationAllows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Power-On Indicator LightLets you know at a glance when an element is on.
Hot-Surface IndicatorProvides a clear indication that a cooking surface is on or still hot.
Pure Color Ceramic-Glass SurfaceComes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

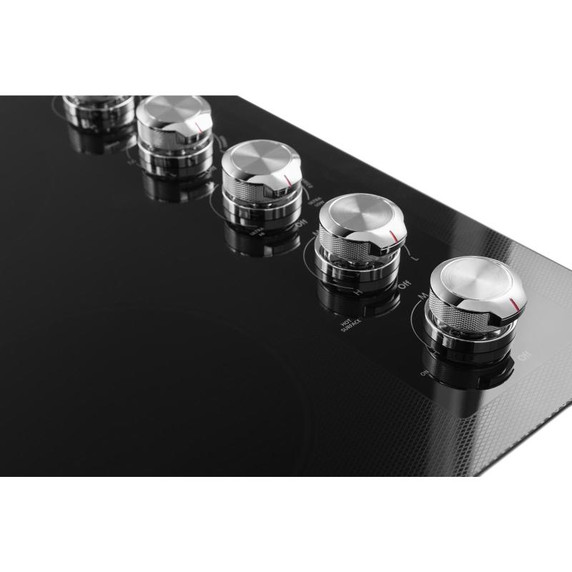

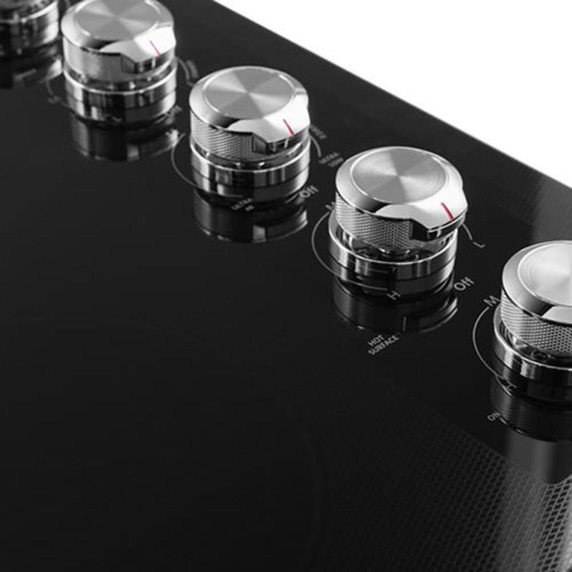

Stainless Steel KnobsEnhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
6'' Round ElementCan reach a power output of up to 1200 watts to handle your daily cooking needs.
Country Of OriginUSA
Extended Service Plan ParentEW08IW2Y
Optional AccessoriesW10177003, W10620783, W10355051B
Hz60
Power Cord IncludedNo
Amps40
Volts220
ULYes
ADA CompliantNo
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Rear Element Burner Power1300W
Left Front Element Burner Power3200W
Left Front Element Burner Size10in.
Left Front Element Burner TypeEven-Heat™ Ultra
Left Rear Element Burner TypeEven-Heat™
Right Front Element Burner Power1200W
Right Rear Element Burner Power3000W/1400W
Right Rear Element Burner Size9in./6in.
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
SelectionDownDraft
Downdraft VentYes
Installs Over Built In OvenNo
Fuel TypeElectric
Size In30
Cooktop TypeDowndraft
Number Of Speeds3
Cfm Motor Class300
Control TypeManual
Knob TypeMetal
Control LocationSide
Kad CooktopEven-Heat Melt Burner; Cookshield Finish; Downdraft Ventilation

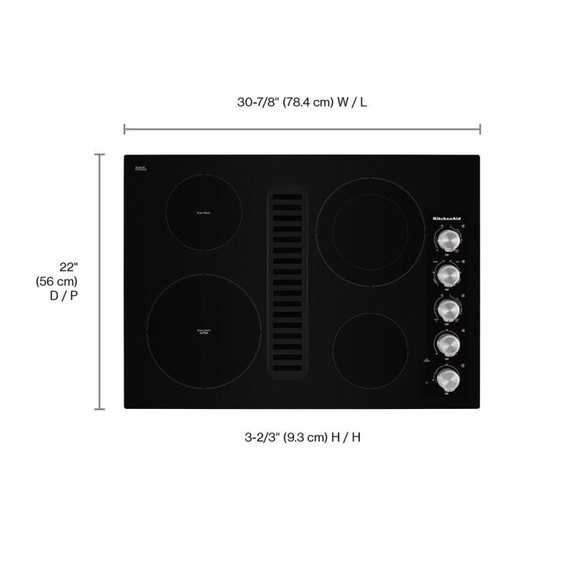

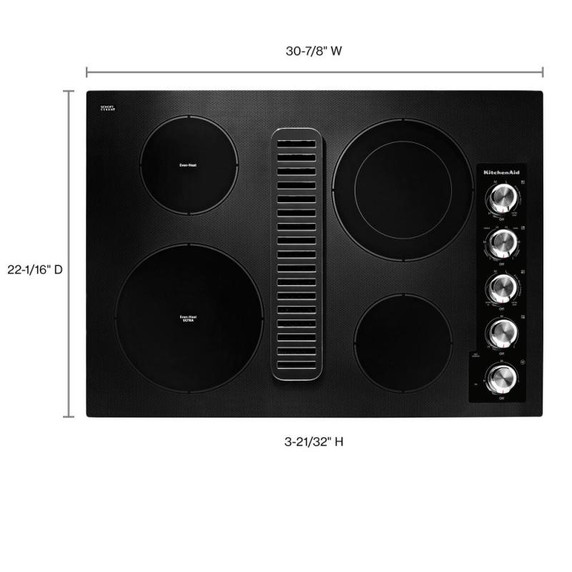

Depth22.06"
Height3.63"
Maximum Height18.75"
Net Weight50.0 Kg.
Width30.88"
Cutout Depth21.13"
Cutout Width28.75"
Carton Depth Inch26.44
Carton Height Inch23.81
Carton Width Inch35.13
