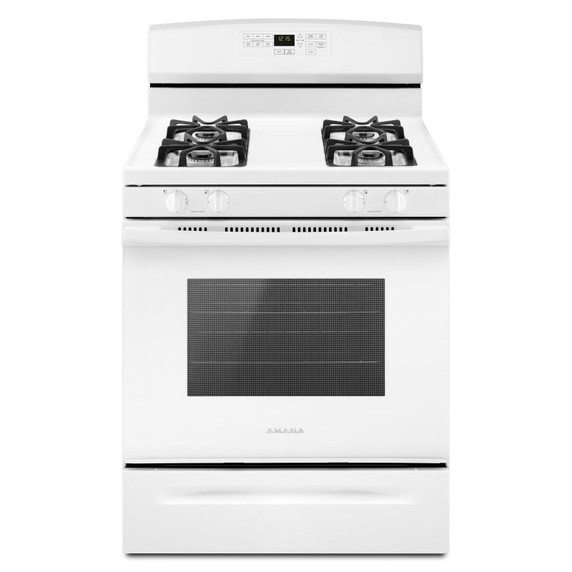

This 30-inch Amana® Gas Range with 5.0 Cu. Ft. Capacity lets you melt, boil and simmer all at once with a Versatile Cooktop. Use Bake Assist Temps to take care of dessert at the same time. Simply pick a preset temperature setting to get started. And when it's time for cleanup, use the Self-Clean Option to let the oven do the dirtywork for you.
Features
Top 3 Features

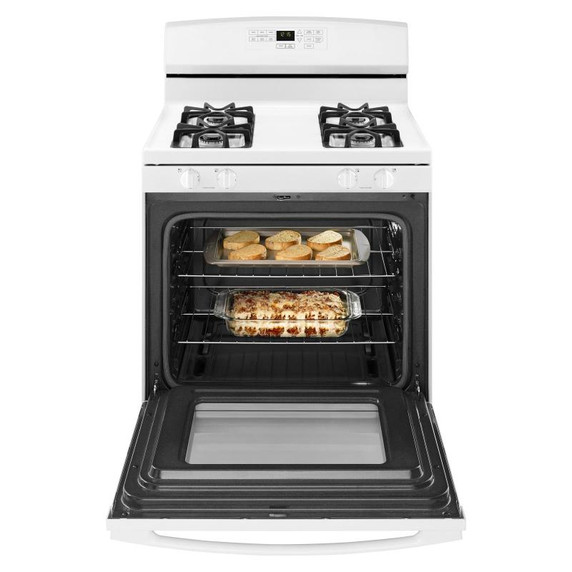

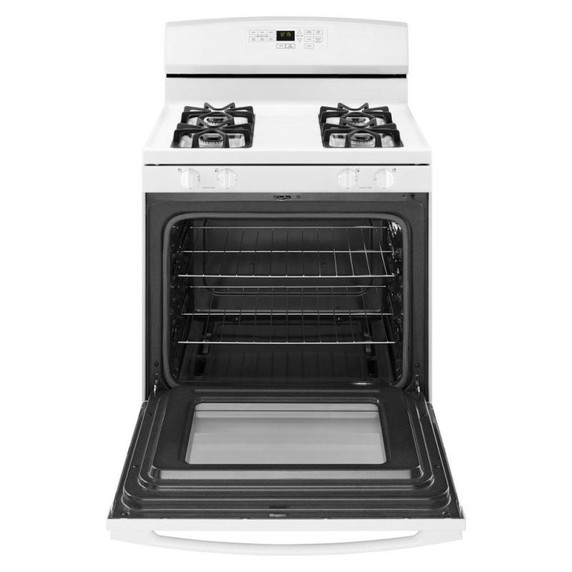

Large Oven CapacityLarge Oven Capacity gives you the space you need to make dinner and dessert at the same time.

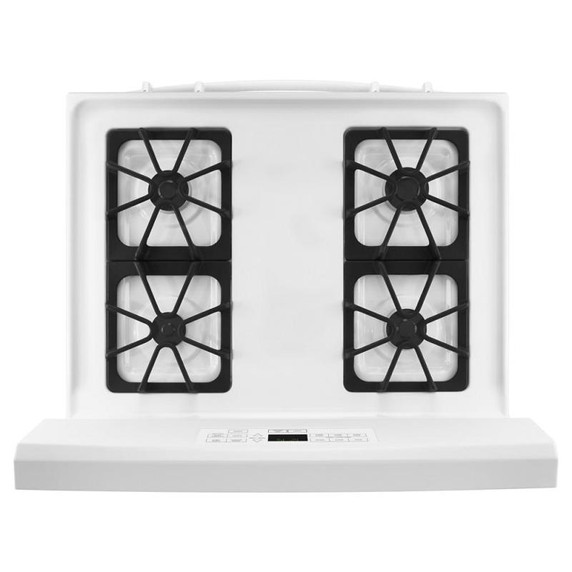

Versatile CooktopOur Versatile Cooktop features multiple burner options that provide up to 15,000 BTUs, helping you cook your favorites all at once.
Bake Assist TempsBake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Additional Features

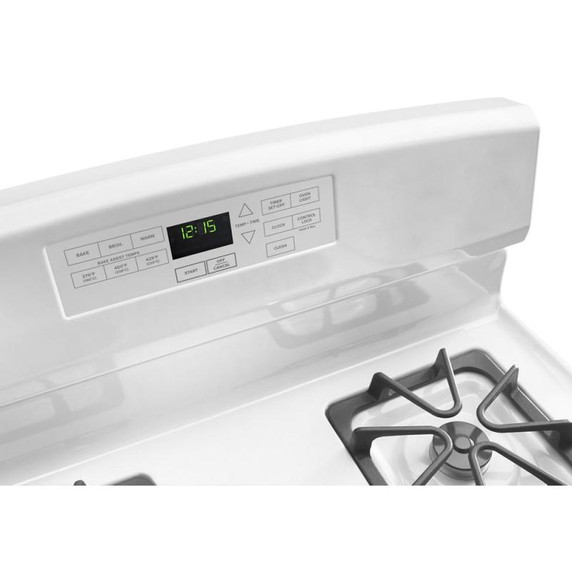

Easy Touch Electronic Controls PlusQuickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure™ Cooking SystemTemp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven WindowSee and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
Warm HoldCan't serve dinner right away? Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken Parmesan are still ready when you are.
EasyAccess™ Broiler DoorThe EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
Custom BroilUse the Custom Broil setting to broil in five-degree increments.
Oven LockoutOven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Self-Clean OptionThere's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Sealed BurnersDon't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Specifications
Controls
Electronic Display TypeLED
Knob ColorBlack Stainless
Configuration and Overview
Specifications
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional Accessories4396096RB
Extended Service Plan ParentEW05IW1Y, EW05IW2Y, EW05IW4Y
Product To Product PairsABB1924BRW, ABB2224BRW, ART104TFDW, ART318FFDW, AZF33X16DW, AZF33X18DW
Features
Hot Surface Indicator LightNo
Heating Element On Indicator LightNo
Power Outage CompatibleYes - Cooktop Only
Exterior
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Oven Cooking SystemThermal
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Bake Element Power16500BTU
Broiler Element Power10000BTU
Convection Element TypeNone
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner TypeSealed Burner
Left Front Element Burner TypeHigh Output
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power12500BTU
Right Front Element Burner Power9500BTU
Grate DetailsDishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Ignition TypeÉlectroniques
Dimensions
Depth Closed Excluding Handles25.44"
Depth With Door Open 90 Degree46.56"
Capacity FT3 (cubic feet)5.0
